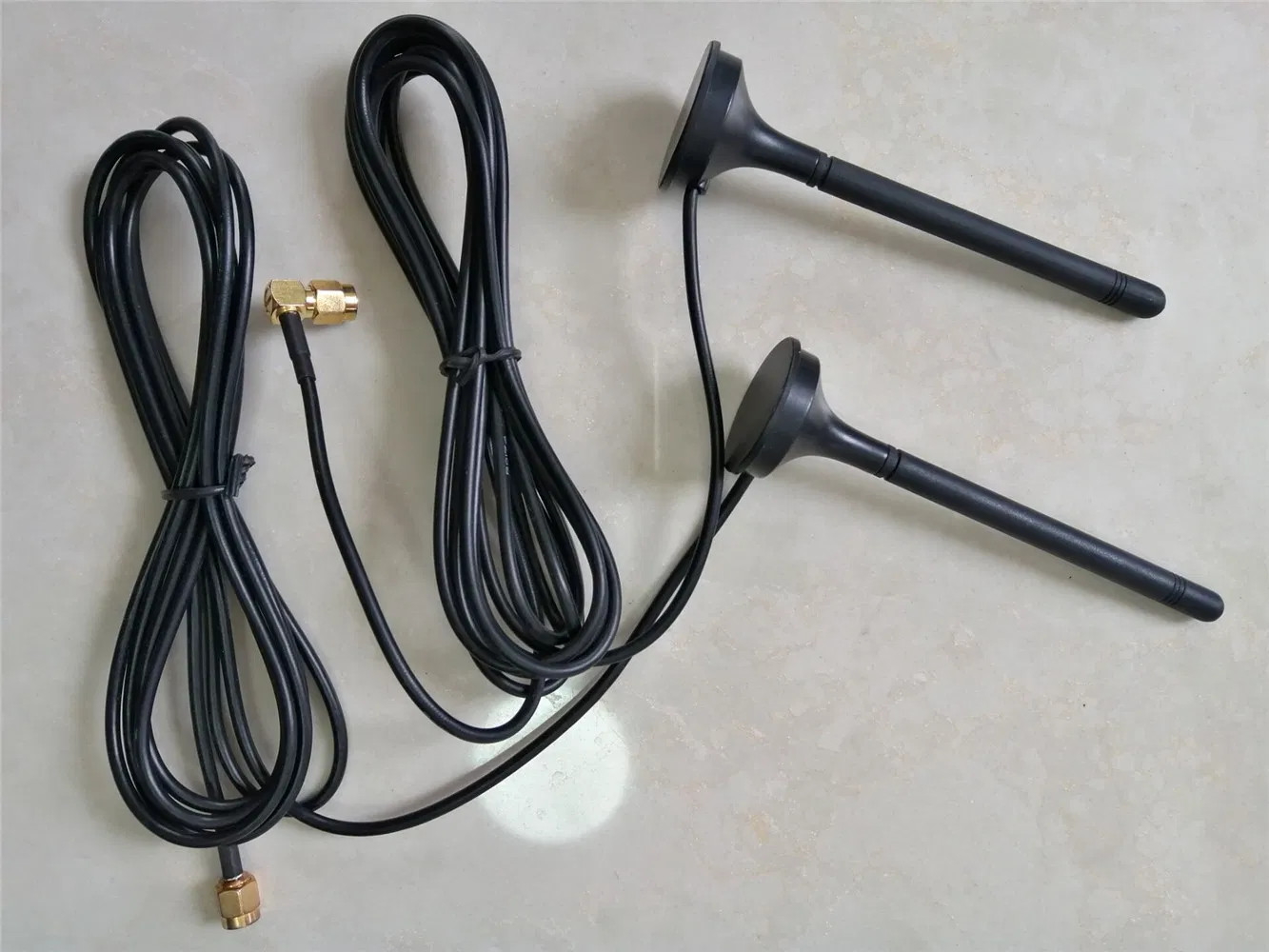

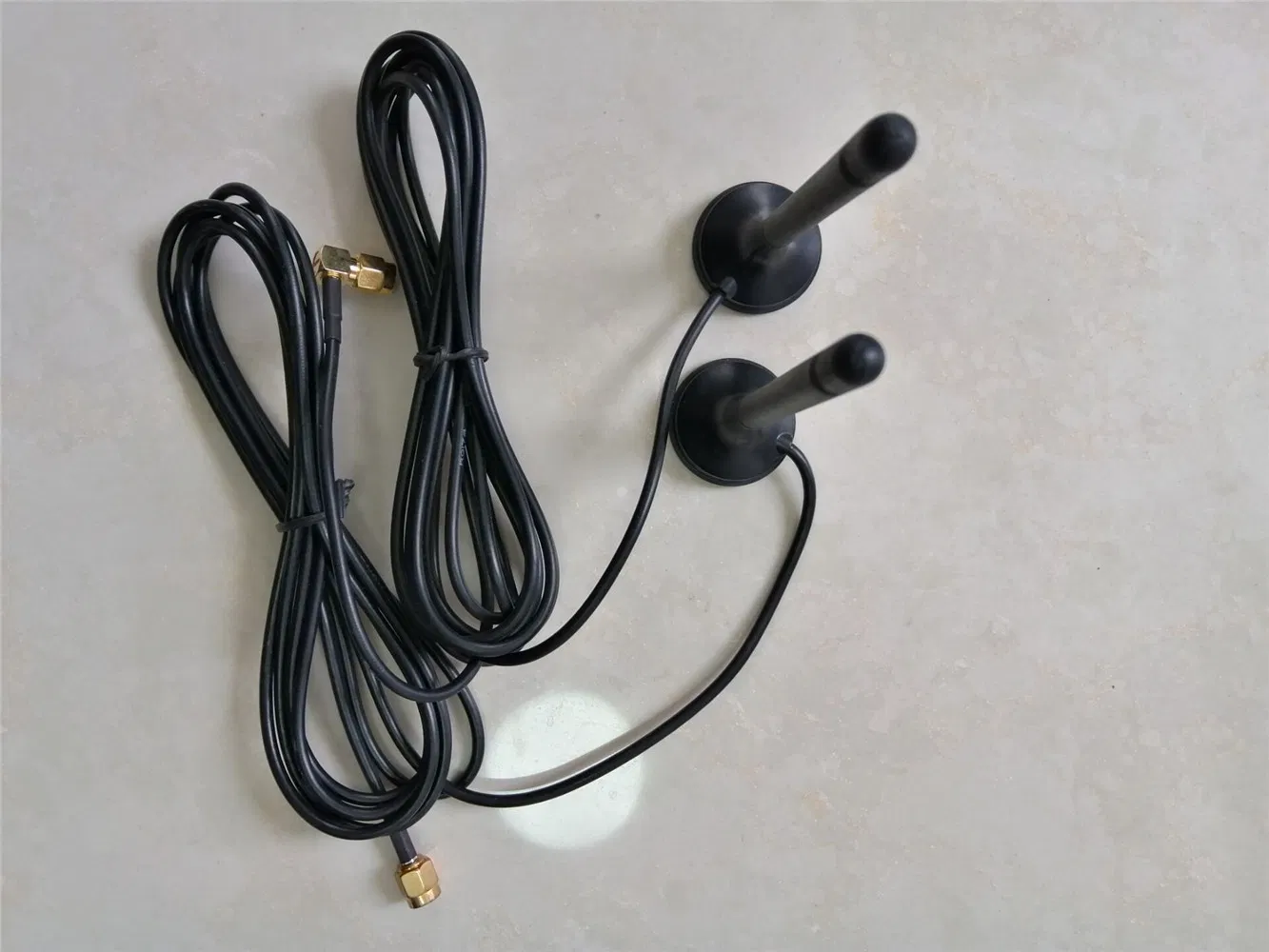

4G Magnet Base Indoor Antenna with SMA or Fakra Connector

 4G Magnet AntennaGL-DY016Electrical IndexFrequency-MHz698-960/1710-2700MHZGain-dBi3VSWR<1.5Normal Impedance-Ω50PolarizationVerticalMechanical IndexCable LengthRG174,3mConnectorSMA male Antenna Dimension-mm29.4*110Installation WayMagnet Vibration10 to 55Hz with 1.5mm amplitude 2hoursEnvironmentally FriendlyROH

Featured Products

4G Magnet Base Indoor Antenna with SMA or Fakra Connector
4G Magnet Base Indoor Antenna with SMA or Fakra Connector
4G Magnet Base Indoor Antenna with SMA or Fakra Connector


4G Magnet Antenna
GL-DY016
Electrical Index
Frequency-MHz698-960/1710-2700MHZ
Gain-dBi3
VSWR<1.5
Normal Impedance-Ω50
PolarizationVertical
Mechanical Index
Cable LengthRG174,3m
ConnectorSMA male
Antenna Dimension-mm29.4*110
Installation WayMagnet
Vibration10 to 55Hz with 1.5mm amplitude 2hours
Environmentally FriendlyROHS Compliant
Temperature-ºC-40~+85
Humidity-%5~95


FAQ
Q: Can I get one sample?
A: Yes, sample is available.

Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.

Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.

Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.

Q: What's the payment term?
A:T/T, Paypal, western union etc.

Q:May I visit your company?
A: Sure, welcome any time.

Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
