Full Band External Gnss GPS Rtk Antenna U-Ggb7151 Outdoor Antenna

Product DescriptionAntena externa de banda completa gnss gps rtk antena exterior U-GGB7151Features1. Using multi feed point design to ensure the superposition of phase center and geometrical center which could minimize the influence of measurement error to lowest range2. High gain of the antenna element and the direction map bea

Featured Products

Product Description

Antena externa de banda completa gnss gps rtk antena exterior U-GGB7151

Features

1. Using multi feed point design to ensure the superposition of phase center and geometrical center which could minimize the influence of measurement error to lowest range
2. High gain of the antenna element and the direction map beam width to make sure the receiving satellites performance of low elevation mask
3. Resistance multipath effects board inside could reduce the measurement error caused by multipath
4. Water proof, shock proof and lightning resistance

Application

Survey antenna is the traditional RTK product standard antenna, can be widely used in land survey, marine survey, channel survey, seismic monitoring, bridge survey, container operation, etc.

Product Parameters
Antenna Specification
Frequency RangeGPS L1/L2, GLONASS G1/G2,Beidou B1/B2/B3, Galileo E1/E2
Impedance50Ω
PolarizationRHCP
Axial Ratio≤3dB
Azimuth Coverage360°
Output VSWR≤1.5
Phase Center Error≤2mm
LNA Specification
LNA Gain40±2dB
Noise Figure≤1.8dB
Input VSWR≤2.0
Output VSWR≤2.0
Ripple±1 dB
Work Voltage3--5.5V
Current Consumption≤45mA
Group Delay≤5 ns
Mechanical Specification
DimensionD 150mm  H 63.7mm
ConnectorTNC-K
Weight425g
Environmental Specification
Operating Temperature-45°C to +70°C
Storage Temperature-55°C to +85°C
Humidity95% Non-Condensing
WaterproofIP67

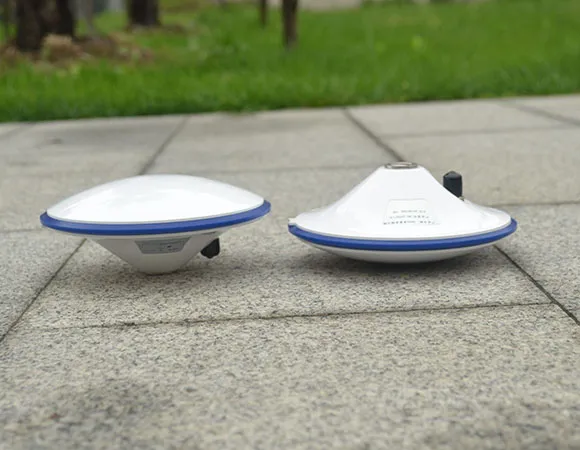

Detailed Photos

Full Band External Gnss GPS Rtk Antenna U-Ggb7151 Outdoor AntennaFull Band External Gnss GPS Rtk Antenna U-Ggb7151 Outdoor AntennaFull Band External Gnss GPS Rtk Antenna U-Ggb7151 Outdoor AntennaFull Band External Gnss GPS Rtk Antenna U-Ggb7151 Outdoor Antenna

Packaging & Shipping

Full Band External Gnss GPS Rtk Antenna U-Ggb7151 Outdoor AntennaFull Band External Gnss GPS Rtk Antenna U-Ggb7151 Outdoor Antenna

After Sales Service
The warranty period is 12 months.
Within the 12 months, if there is any fault caused by non-artificial reason, which can be repaired by the customer themselves, we
can offer the spare parts to the customer free of charge. If there is any problem which cannot be repaired by the customer
themselves, the customer can resent the products to our factory for repairing free of charge, and the freight charge would be
shared by the customer and our company two sides.Under the circumstances out of the warranty period, if there is any problem, we
can repair free of charge for the customers, we just charge for the spare parts at the cost itself, and the freight charge would
be bear by the customers.
If there is any problem caused by human reason within the first year, the service would be the same as the service out of the
warranty period.
